Blast Protection products designed for  "Class 1 Dangerous Goods"

containment and shipment

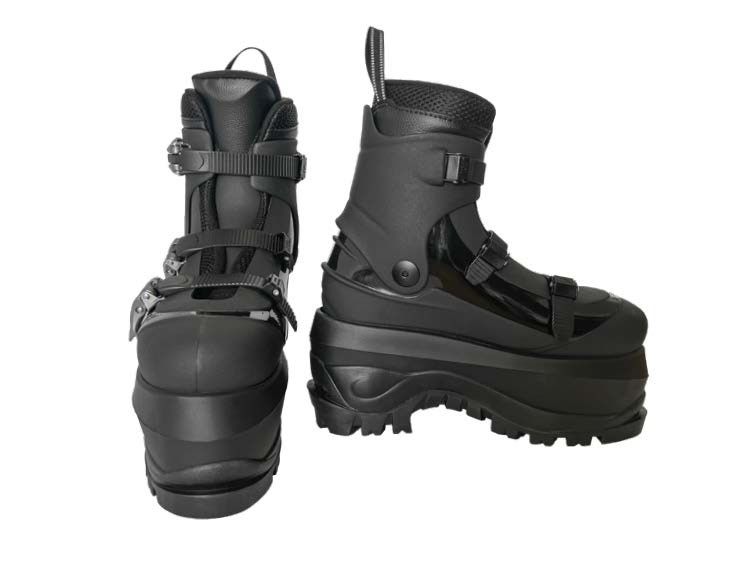

ANTI MINE BOOTS : PPE100 - New Design

Testimonial from Ukrainian soldier - footage from the charity "Together Into the Future UA" click here for more details

The newly designed Anti-Mine boots PPE 100 were developed for mine clearance teams to help protect their personnel from the traumatic damage caused by anti-personnel mines.


The multi-layered composite design, (using proprietary SabreMat® composite technology, developed by Energetics Technology Ltd) reduces the effect of blast and fragments to the feet and legs which reduces the injury significantly.


Knee length gaiters prevent flash burns and limit fragment penetration into the lower legs.

Design and performance improvements

  • Designed to withstand 75g TNT and anti personnel mines with fragmentation

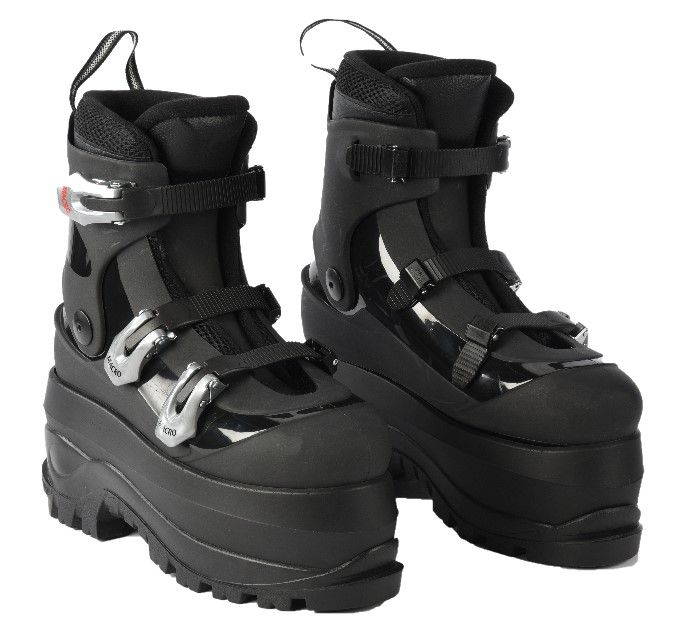

  • New locking clasp mechanism provides a secure mechanical locking closure
  • Quick removal in event of injury or damage
  • New sole design for increased durability
  • Multi complex sole design for enhanced mitigation
  • Improved tread pattern for all terrains
  • Hinged ankle for enhanced mobility
  • Breathable, fabric liner for added comfort and prolonged use
  • Range of sizes -UK sizes 9 - 11  / M & L
  • Total weight per boot: 2,3kg / 5.1 lbs


PPE100 Development

Landmines: cheap, indiscriminate and lethal. In 2020, at least 7,073 casualties of mines/ERW (Explosive Remnants of War) were recorded: 2,492 people were killed and 4,561 people were injured. As a result, they remain a deadly problem with minefields present in 54 countries around the world.(Landmine Monitor 2020.)

The PPE100 Anti Mine Boot has been re-engineered and re-introduced due to overwhelming customer demand.

The multi-layered composite design reduces the effect of the blast and fragments on the feet and legs which can reduce the injury significantly. Furthermore, the knee length ballistic gaiters prevent flash burns and limit fragment penetration into the lower legs.

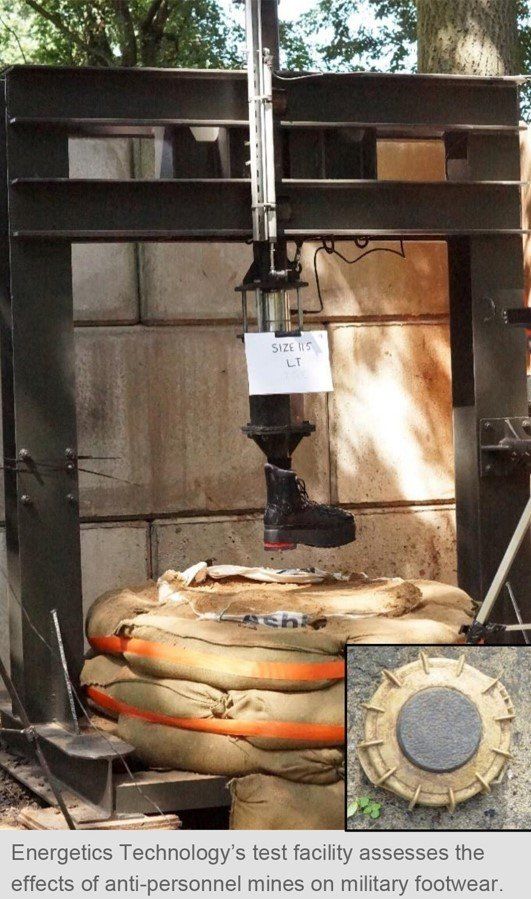

Tested against surrogate anti personnel mines. The blast protected sole includes SABREMATTM which dissipates the blast energy, thus diminishing the fragment hazard. This is sacrificed leaving the upper boot intact and the lightweight, composite inner sole unpenetrated.

Customer testing has shown the outstanding effectiveness of the PPE100 with the best protective performance, comfort and usability of any anti-landmine boot on the market for charges up to 56g C4.

CHARACTERISTICS

  • Composite sole shields and reduces the effects of shock and blast over pressure on the foot, which can reduce levels of injury
  • Soft, removable gaiters from foot up to the knee, protect against flash burns and fragment penetration



    Comfort is increased by:

  • Waterproof and suitable for hot or cold climates
  • Robust, durable and easily cleaned
  • Strong upper section which supports the lower leg, foot and ankle
  • Toe-curl shape enables easier transition from kneeling to standing
  • Easy to walk in and comfortable to wear all day as the low weight and sturdy build allows for a stable walk in all terrains

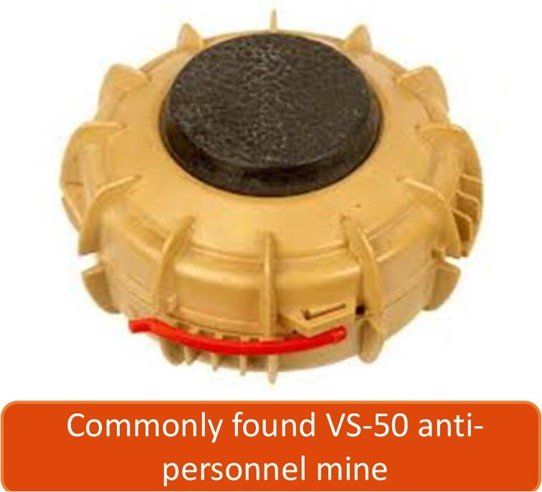

VS 50 Anti personnel mine
Video - PPE Boot v Standard Army Boot

All weights and dimensions are approximate and subject to change. Gaiters can be supplied in various colours or camouflage patterns.

(UK size 9 example) PPE 100 Specifications
Weight : Boot (each) 1.6 kgs / 3.5 lbs
Total weight per Boot 2.3 kgs / 5.1 lbs
Inner (each) 0.3 kgs / 0.7 lbs
Gaiter (each) 0.4 kgs / 0.9 lbs
Available in UK sizes 9-11
